CM10 458 SOCOM Rifle – 16″ Carbon Gray

CM10 458 SOCOM Semi Auto Rifle – 16″ Carbon Gray

The Chattahoochee Munitions CM10 458 SOCOM Semi Auto Rifle takes a different approach to the .458 SOCOM platform. Built around the CM10 large-frame receiver architecture, this rifle combines a 16-inch fast-twist .458 SOCOM barrel, center-feed AICS magazine system, adjustable gas system and adjustable buffer with the additional cartridge-length capability of the SOCOM XL configuration.

Finished in Carbon Gray Cerakote with Black B5 Systems furniture, this configuration pairs the CM10 billet receiver set and 15-inch LWS handguard with a subdued two-tone finish.

A Different Kind of 458 SOCOM Semi Auto Rifle

The .458 SOCOM cartridge is traditionally associated with the AR-15 platform and its magazine dimensions. The 458 SOCOM Semi Auto Rifle from Chattahoochee Munitions takes a different approach by using the larger CM10 platform and an AICS-pattern center-feed magazine system.

The CM10 lower receiver is machined specifically for AICS-pattern magazines. For SOCOM XL applications, Chattahoochee Munitions uses a purpose-modified 458 SOCOM XL Magazine based on the MDT metal AICS magazine and configured specifically around extended-length .458 SOCOM ammunition.

This architecture allows the 458 SOCOM Semi Auto Rifle to accommodate exceptionally long .458-caliber projectiles without being constrained by conventional AR-15 magazine length.

458 SOCOM Chamber — SOCOM XL Capability

The CM10 is chambered in .458 SOCOM. SOCOM XL does not represent a different chamber or cartridge case. Instead, the XL configuration provides additional usable cartridge overall length through the firearm and magazine architecture.

That distinction becomes especially important with exceptionally long projectiles. Seating a very long projectile within conventional AR-15 magazine dimensions requires more of the projectile to extend into the cartridge case. SOCOM XL provides additional cartridge overall length so the projectile can be seated farther out.

The chamber doesn’t get longer. The cartridge gets more room.

That extended-length capability is a defining feature of this 458 SOCOM Semi Auto Rifle and is supported by the CM10’s modified MDT AICS magazine and center-feed architecture.

Purpose-Developed 458 SOCOM Semi-Auto Ammunition

Extended cartridge length solves only part of the challenge in a semi-automatic platform. The ammunition must also provide the operating characteristics necessary to cycle the action. Chattahoochee Munitions developed 458 SOCOM Semi Auto Ammo specifically around the feeding, gas and cycling requirements of the CM10.

The current load uses a 650gr Maker REX projectile at an extended 2.790-inch OAL and a propellant configuration selected to provide the gas characteristics necessary for semi-automatic cycling. Specific propellant types, charge weights and other proprietary loading data are not published.

The result is a firearm, magazine and ammunition system developed around the same SOCOM XL concept rather than treating extended-length ammunition as an isolated component.

Purpose-Built CM10 Large-Frame Receiver Set

The CM10 begins with a billet 7075-T6 aluminum upper and lower receiver set built around DPMS Low Profile specifications. The receiver architecture maintains compatibility with 16 TPI barrel nuts, DPMS-pattern barrel extensions and compatible large-frame bolt carrier groups while incorporating features specific to the CM10 platform.

The lower receiver is machined around AICS-pattern magazines rather than conventional AR10 magazines. A paddle-style magazine release is positioned forward of the trigger guard, while the integral trigger guard and weight-reduction machining contribute to the purpose-built design.

The upper eliminates the forward assist and incorporates additional weight-reduction cuts. Fire/Safe markings are engraved on both sides of the lower receiver. On this 458 SOCOM Semi Auto Rifle, the receiver set is finished in Carbon Gray Cerakote.

TriggerTech Duty Trigger

The CM10 uses a TriggerTech Duty Trigger. Available configurations include:

• 3.5 lb Single-Stage Flat
• 3.5 lb Single-Stage Curved
• 3.5 lb Two-Stage Flat

The lower is also equipped with a CM ambidextrous safety, CM10 pivot and takedown pins and a Black B5 Systems grip.

Adjustable Buffer System

The rear of the rifle uses a CM Mil-Spec buffer tube, QD end plate and Black B5 Systems Bravo Stock. An Odin Works Adjustable AR10 Buffer provides another point of operating-system adjustment.

Combined with the adjustable gas block, the adjustable buffer gives the 458 SOCOM Semi Auto Rifle additional tuning capability when operating with different ammunition and suppressor configurations.

CM10 Bolt Carrier Group

The CM10 bolt carrier group uses a Mil-Spec 9310 steel bolt that is high-pressure tested, magnetic-particle inspected and shot-peened. The bolt, carrier and gas key receive a nitride finish.

• Mil-Spec 9310 steel bolt
• HPT / proof-tested bolt
• MPI inspected
• Shot-peened
• Nitride bolt, carrier and gas key
• Gas key hardened to USGI specifications
• Grade 8 hardened gas-key fasteners
• Mil-Spec staked gas key
• Tool-steel extractor
• T.E.A. extractor spring
• Black extractor insert
• Mil-Spec Crane O-ring

CM10 Warhammer Ambidextrous Charging Handle

The rifle uses the CM10 Warhammer ambidextrous charging handle, manufactured from 7075 aluminum and developed with Breek Arms.

Adjustable Gas System

The CM10 uses a Melonite pistol-length gas tube with a Superlative Arms .875″ Adjustable Gas Block. Together with the adjustable buffer, the gas system provides the ability to tune the semi-automatic operating system around the rifle’s configuration and ammunition.

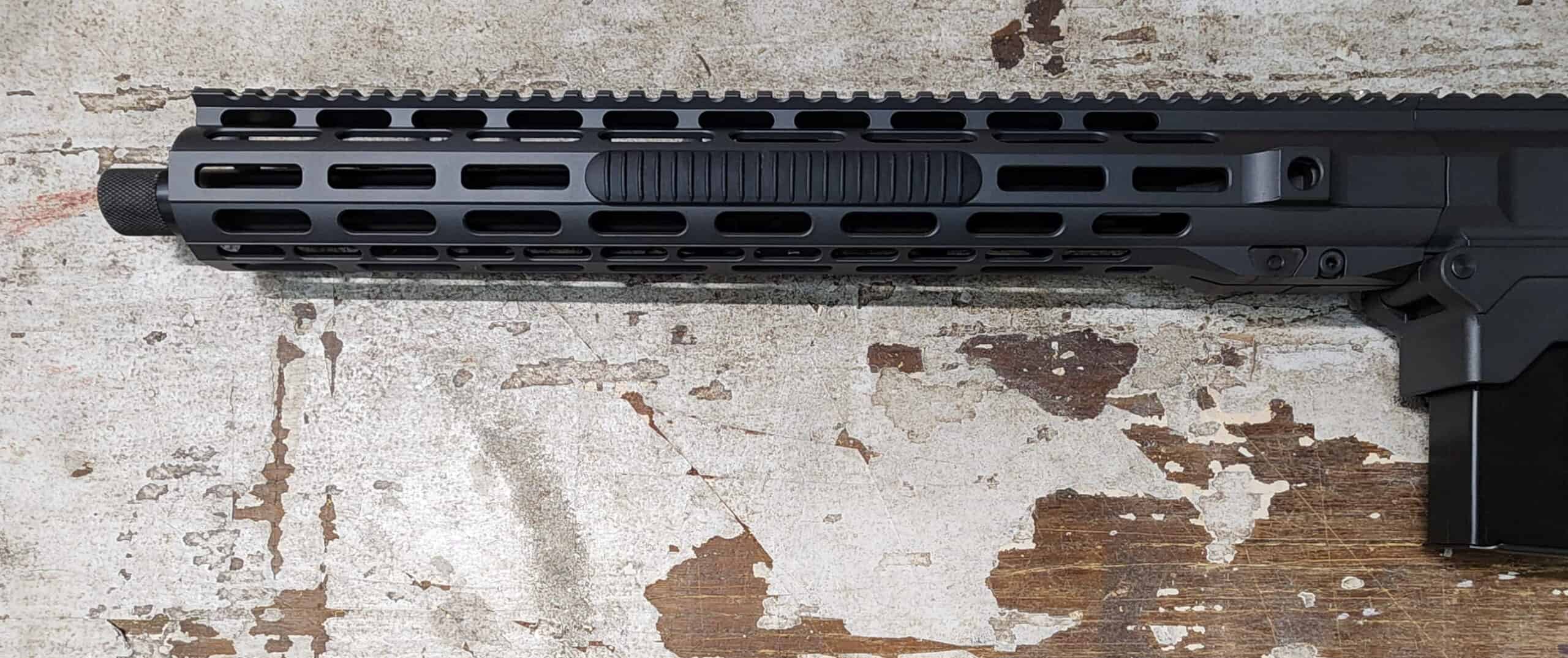

15″ CM10 LWS M-LOK Handguard

The 16-inch 458 SOCOM Semi Auto Rifle uses the 15-inch CM10 LWS handguard manufactured from 6061 aluminum with a steel barrel nut.

• 15″ handguard length
• 6061 aluminum construction
• Steel barrel nut
• Full-length Picatinny top rail
• M-LOK attachment surfaces along the sides and bottom
• QD sling points at the 3 and 9 o’clock positions
• Carbon Gray Cerakote
• Black B5 Systems rail covers

16″ Fast-Twist .458 SOCOM Barrel

At the center of the 458 SOCOM Semi Auto Rifle is a 16-inch .458 SOCOM barrel built around heavy-projectile applications.

• Chambering: .458 SOCOM
• Barrel Length: 16″
• Material: 416R stainless steel
• Rifling: 5R
• Twist Rate: 1:10
• Muzzle Threads: 11/16×24
• Gas Journal: .875″
• Gas System: Pistol length
• Barrel Extension: Center feed
• Finish: Black Cerakote

The fast 1:10 twist is particularly relevant to exceptionally heavy .458-caliber projectiles. For a deeper explanation of heavy-projectile, fast-twist and subsonic .458 SOCOM applications, see our guide to 458 SOCOM Subsonic.

Subsonic, Supersonic and Suppressed Configurations

The combination of adjustable gas and adjustable buffer systems gives the CM10 operating-system flexibility for different ammunition and suppressor configurations. The 16-inch barrel provides a versatile platform for both heavy-projectile subsonic applications and supersonic .458 SOCOM ammunition.

For the SOCOM XL application, the 458 SOCOM Semi Auto Rifle combines its center-feed architecture, modified AICS magazine and fast-twist barrel with ammunition developed around the operating requirements of the CM10 platform.

CM10 458 SOCOM Semi Auto Rifle Specifications

• Platform: CM10 Large-Frame Semi-Automatic
• Chambering: .458 SOCOM
• SOCOM XL Capability: Yes
• Barrel: 16″ 416R Stainless Steel
• Twist: 1:10
• Rifling: 5R
• Muzzle Threads: 11/16×24
• Gas Journal: .875″
• Gas System: Adjustable, Pistol Length
• Magazine: 7-Round Modified MDT Metal AICS Magazine for SOCOM XL
• Feeding: Center Feed
• Receiver Material: 7075-T6 Billet Aluminum
• Handguard: 15″ CM10 LWS M-LOK
• Trigger: TriggerTech Duty, Configuration Selectable
• Buffer: Odin Works Adjustable AR10 Buffer
• Stock: B5 Systems Bravo
• Furniture: Black B5 Systems
• Receiver / Handguard Finish: Carbon Gray Cerakote

Frequently Asked Questions

Is the CM10 chambered in 458 SOCOM XL?
No. The chamber is .458 SOCOM. SOCOM XL refers to the extended cartridge overall-length capability provided by the compatible firearm and magazine architecture. It is not a different chamber.

Why build a 458 SOCOM Semi Auto Rifle on the CM10 platform?
The CM10 uses a large-frame receiver and AICS-pattern center-feed magazine architecture. This allows the rifle to accommodate extended-length SOCOM XL ammunition beyond conventional AR-15 magazine dimensions while retaining semi-automatic operation.

What magazine does the CM10 use?
The SOCOM XL configuration uses a purpose-modified 458 SOCOM XL Magazine based on the MDT metal AICS magazine and configured specifically for extended-length .458 SOCOM ammunition.

Is CM10-compatible SOCOM XL ammunition available?
Yes. Chattahoochee Munitions offers 458 SOCOM Semi Auto Ammo developed specifically around the feeding, gas and cycling requirements of the CM10 platform.

What barrel twist does the CM10 use?
The 16-inch .458 SOCOM barrel uses a fast 1:10 twist intended to support exceptionally heavy .458-caliber projectiles.

Can the CM10 operating system be adjusted?
Yes. The rifle incorporates both an adjustable gas block and an adjustable AR10 buffer, providing two points of adjustment within the semi-automatic operating system.

Where can I learn more about SOCOM XL?
Visit Terminal 458 to explore the complete Chattahoochee Munitions .458 SOCOM ecosystem, including CM10 and CM7S firearms, SOCOM XL ammunition, magazines and technical information.

Limited Lifetime Warranty

The 458 SOCOM Semi Auto Rifle is backed by the Chattahoochee Munitions Limited Lifetime Warranty for the original purchaser, subject to the applicable warranty terms and original-configuration requirements.

Built by Chattahoochee Munitions, the 458 SOCOM Semi Auto Rifle combines a large-frame semi-automatic platform, fast-twist .458 SOCOM barrel, SOCOM XL magazine capability, center-feed architecture and adjustable gas and buffer systems into a purpose-built big-bore rifle. Explore the complete family of firearms, ammunition, magazines and supporting technical information at Terminal 458.
