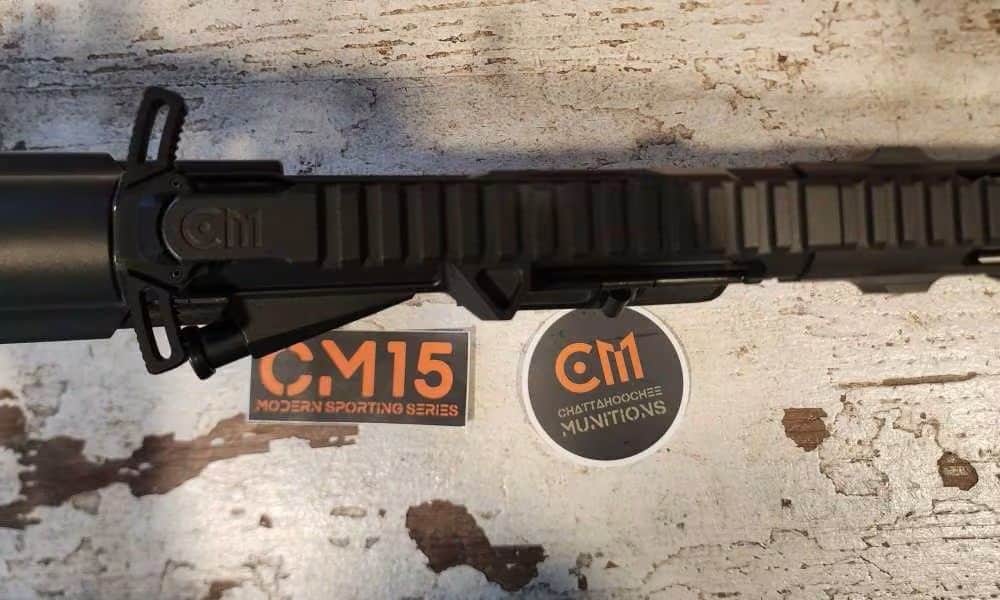

This is the flagship 338 ARC AR15 pistol of Chattahoochee Munitions. This will be one of the sturdiest-feeling weapons, as everything is designed in tight tolerances. Pictures show a Q Brake, but we can substitute for any 5/8×24 muzzle device of your choosing, whether Keymo, ASR, Q Cherry Bomb, etc. (Price variance applies to some muzzle devices). All of our firearms are equipped with HIPERFIRE (High Performance Firearms) Triggers; all are 2.5lb single stage Reflex (curved) or Competition (straight with shoe); Competition is pictured.
CM15 Upper and Lower Receiver:
- Mil-spec dimensions to mate with any AR15 Components
- CNC machined from 7075-T6 billet aluminum
- Pictogram’ style Fire/Safe engravings on both sides
- Light-Weight FCG Faces and Mag-well
- Integral trigger guard for added overall strength
- Machined (not broached) Mag-well with wide flare
- Lightweight Lower Receiver Weight = 8.0 oz
- Black Tungsten Cerakote
Lower Parts:
- CM Ambi Safety
- CM Ambi Mag Release
- CM15 Pivot and Takedown Pins
- HIPERFIRE 2.5lb single stage Reflex (curved) or Competition (straight with shoe) Trigger and pins
- CM15 Ambidextrous Bolt Release
- B5 Systems Black Grip
Receiver Extension:
SBPDW Brace and Buffer Tube Assembly – Black Tungsten Cerakote
Odin Adjustable Buffer AR15
Upper:
CM15 Bolt Carrier Group:
- Milspec 9310 steel
- HPT Bolt (High Pressure Tested/ Proof)
- MPI Bolt (Magnetic Particle Inspected)
- Nitride coated bolt
- Nitride coated Carrier
- Nitride coated Gas Key
- Gas Key Hardened to USGI Specifications
- Grade 8 Hardened Fasteners Key Staked Per Mil-Spec
- Tool Steel Extractor
CM15 Ambi Charging Handle – 7075 Aluminum
CM15 Dust Cover
CM Pistol Length Gas Tube – Melonite
Superlative Arms .750 Adjustable Gas Block – Melonite
CM15 LWS Low Profile 9.5″ Mlok Handguard – Black Tungsten Cerakote
- 6061 Aluminum
- Dual Taper Attachment System
- Steel Barrel Nut
- QD Attachment at 3 and 9 o’clock positions
- Mlok attachment on sides and bottom
- Full Picatinny Top Rail
B5 Systems Black Rail Covers
5/8×24 Muzzle Device
- Q Brake pictured, but
- Can be substituted with no net price adjustment for DeadAir Keymo or Q Cherry Bomb
- Reach out for price adjustment on other devices.
Barrel: 338 ARC AR15 PISTOL
CM 338 ARC 10″ Barrel
- 416R Stainless
- E100 Blackout Cerakoted
- 1:5 Twist
- Shouldered crown
- 5/8×24 thread pitch
- .750 gas journal
- Pistol Length System
Magazine:
1x20rd DURAMAG 338 ARC Black
OAL: 26.5375″ to 29.0375″
OAW: 6lb/10oz. with unloaded magazine and no accessories (weight and dimensions on other tab are for shipping purposes)
LOP: 10.25″to 12.750″
Dimensions and weight on other tab are for shipping purposes
Warranty – Limited Lifetime
Limited to original purchaser
Limited regarding functional performance
Limited regarding original configuration
**Pistol may be pictured with Holosun and Suppressor for illustration purposes, they are obviously not included in the price**
AR15 338 ARC Pistol 10″
